SPECIFICATIONS LIBERO GF – ELPRO
General technical data: |
|
| Type: | Wireless Data logger with internal temperature sensor |
| Application: | Transport Monitoring: Global distribution of temperature sensitive products, frozen applications |
| Recording options and mode: | Multiple use: start / stop, Loop mode |
| Sensors: | High accuracy digital temperature sensor, geographical location, light, tilt |
| Measurement range: | – 40 °C..+ 70 °C (internal sensor) |
| Resolution: | 0.1 ° |
| Measurement intervals: | 5 to 60 minutes, user configurable via elproCLOUD |
| Cellular network: | LTE-M and NB-IoT |
| Measurement capacity: | 31.000 measurement values (equals 322 days with 15 min measurement interval) |
| Battery life: | Up to 14 months of operation
12 months continuous operation with 15 min measurement interval and 120 min communication interval (Battery life is affected by temperature and network conditions) |
| Configurable alarms: | 7 temperature thresholds with alarm delay (4 upper limits, 3 lower limits) |
| Certificate: | CE, FCC, UKCA, ICES, RoHS, UN38.3, WEEE, NCC, RSM, TDRA, ENACOM, IMDA, MIC, ACMA/RCM
Calibration Certificate: ILAC/NIST/ISO 17025 |
| Display: | Multifunction LCD, size: 42 × 20 mm |

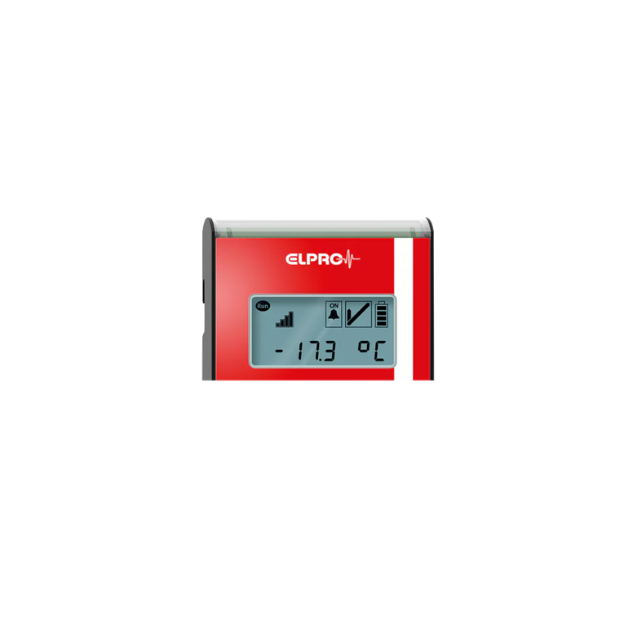

LIBERO GF
The LIBERO GF is a multi-use real-time temperature data logger designed specifically for frozen shipment monitoring. It features a high-accuracy, 100% calibrated internal temperature sensor and can operate reliably in temperatures as low as – 40 °C, making it ideal for monitoring frozen pharmaceutical products, biological samples, and temperature-sensitive goods.
The device provides real-time insights via elproCLOUD, automatically uploading temperature, geolocation, light exposure, and tilt data. It also features multi-level alarm criteria and event-driven alerts for temperature excursions. Up to 31,000 temperature values can be stored on the logger, ensuring continuous monitoring even in challenging environments.
With a battery life of over one year, even in frozen applications, and automatic flight detection, the LIBERO GF is a cost-effective and compliant solution for global temperature-sensitive shipments.
