SPECIFICATIONS LIBERO CH – ELPRO
General technical data: |
|
| Type: | PDF Logger with USB and Bluetooth® Low Energy (BLE) interface with internal temperature/humidity probe |
| Application: | Site Monitoring, Container Monitoring, Round Trip Monitoring, Storage |
| Recording options and mode: | Multiple use: start/stop or loop mode |
| Type of probe: | High-accuracy digital temperature/humidity sensor |
| Measurement range: | -30 °C..+70 °C, 0 %RH..100 %RH (non-condensing) |
| Resolution: | 0.1 °C, 0.1 %RH |
| Measurement intervals: | 1 to 60 minutes, user configurable |
| Measurement capacity: | 37’750 values each for temperature and humidity (equals logging duration of 12 months at 15 minute logging interval) |
| Battery life: | 2 years (in core range of 0 °C..25 °C, 14 months over full measurement range) |
| Configurable alarms: | 8 temperature alarm zones with single or cumulative delays, 2 humidity thresholds, with alarm delay, MKT alarm |
| Certificate: | CE, FCC, ICES, RoHS, WEEE, GAMP® 5, RTCA DO-160, EN12830
Calibration Certificate: ILAC/NIST/ISO 17025 (customizable options available) |
| Display: | Multifunction LCD, size: 22 × 22 mm (0.87 x 0.87 inch), with OK and ALARM indicator |

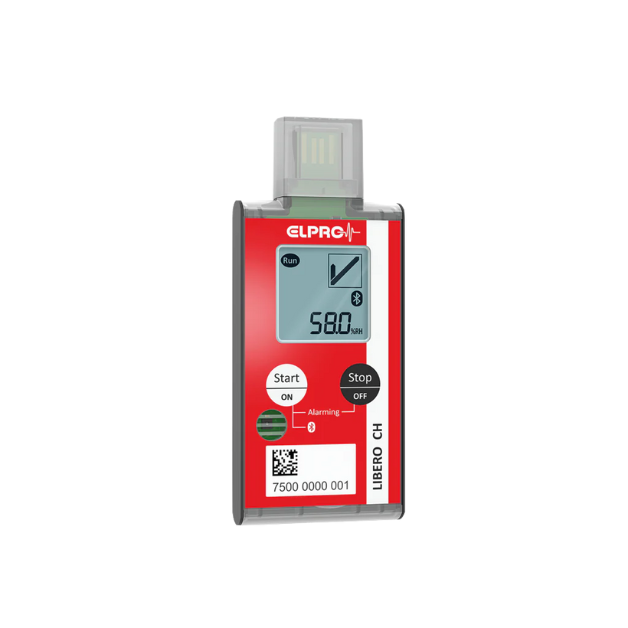

The LIBERO CH
The LIBERO CH is a multi-use PDF data logger designed for monitoring temperature and humidity conditions during shipment, site monitoring, and storage. It features a high-accuracy internal temperature and humidity sensor, which is 100% calibrated for precise measurements.
This logger supports up to eight temperature alarm zones and two humidity thresholds, with configurable MKT (Mean Kinetic Temperature) and duration-based alarms. Users can enable or disable alarms as needed, making it adaptable for different monitoring scenarios, such as cleaning storage containers.
The LIBERO CH has a large storage capacity of 75,500 measurements (37,750 for temperature and 37,750 for humidity) and a battery life of up to 2 years. It generates automatic PDF reports via USB and allows wireless data transfer through Bluetooth® Low Energy (BLE) using the LIBERO Cx BLE app (iOS & Android).
