SPECIFICATIONS ECOLOG-PRO 1NTR – ELPRO
General technical data: |
|
| Type: | Wireless temperature logger |
| Application: | Temperature monitoring for rooms, refrigerators, freezers |
| Type of probe | Internal NTC |
| Measurement range: | – 35 °C..+50 °C (with optional LiFe batteries),
– 10 °C..+50 °C (with Alkaline batteries) |
| Resolution: | 0.1 °C |
| Measurement intervals: | 1, 2, 3, 5, 10, 15, 20, 30, 60 minutes; user programmable via software (elproCLOUD & elproMONITOR) |
| Measurement capacity: | 14’800 measurement values |
| IP protection class: | IP67 |
| Battery life: | Up to 14 months |
| Environmental storage temperature/humidity: | -10 °C..+50 °C
10 %RH..90 %RH, non-condensing |
| Environmental operating temperature/humidity | -35 °C..+50 °C(depending on batteries used)
0 %RH..100 %RH |
| Operating altitude: | This device must not be used at altitudes higher than 2000 meters above sea level |
| Display: | 3 LED for communication and measurement status |
| Certificate: | CE (868 MHz), UKCA (868 MHz), RoHS, FCC (915 MHz), ACMA/RCM (915 MHz), IMDA (868 MHz)
Production validation and 3-point calibration certificate included Optional ISO 17025 calibration available |

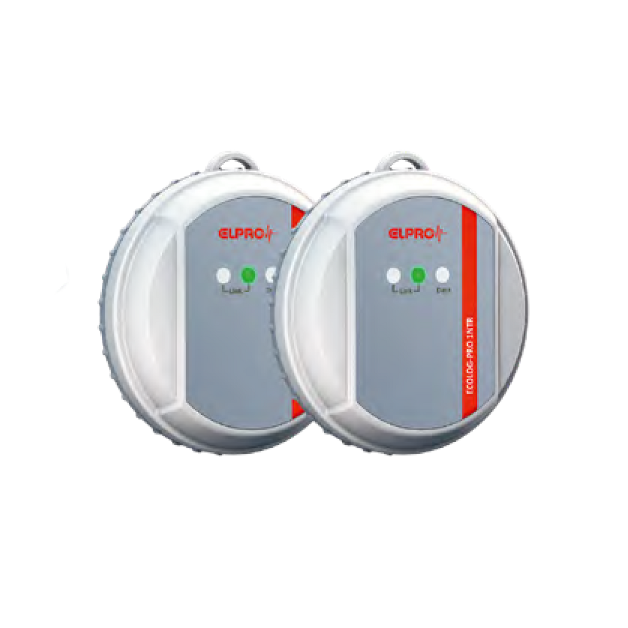

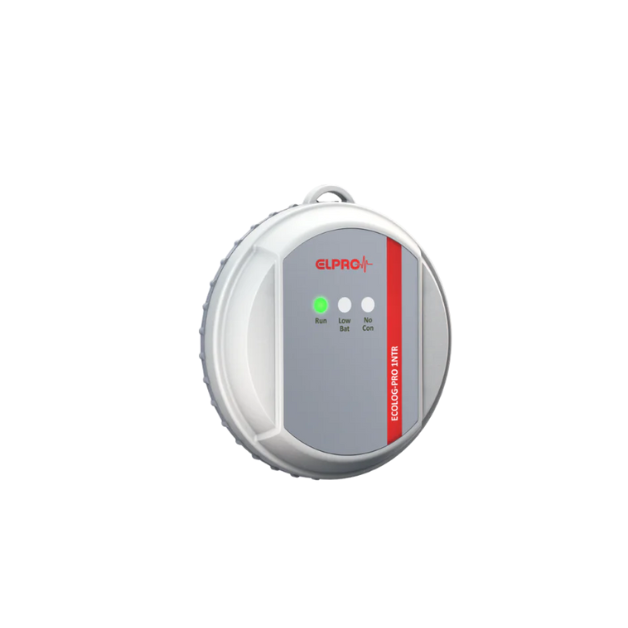

ECOLOG-PRO 1NTR
The ECOLOG-PRO 1NTR is a wireless temperature data logger designed for monitoring rooms, refrigerators, and freezers. It is battery-operated and supports wireless communication via 868 MHz (Europe, UK, Singapore) or 915 MHz (USA, Australia, New Zealand) frequency bands, providing a reliable signal range.

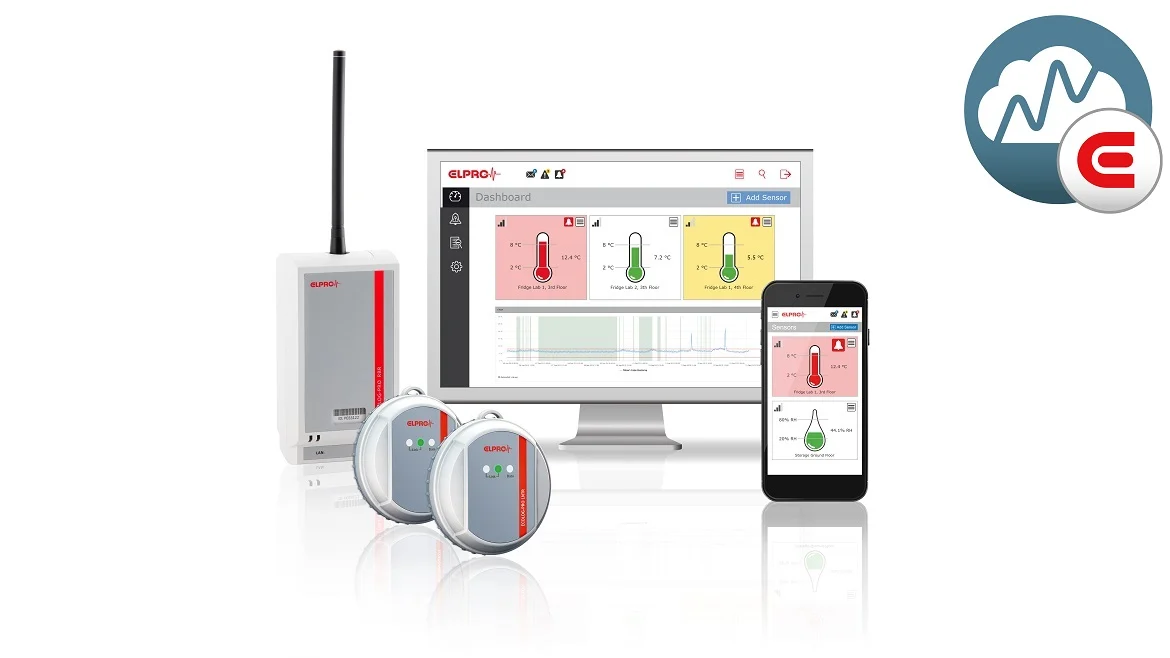

ECOLOG-PRO 1NTR integrates seamlessly with elproCLOUD and elproMONITOR for real-time monitoring and automatic data storage, ensuring no data loss even if the connection is temporarily interrupted. The device can store 14,800 measurement values and features an internal NTC temperature sensor.
With an IP67 rating, it is dustproof and water-resistant, making it suitable for challenging environmental conditions. The LED indicators provide quick status updates for communication and measurement.
