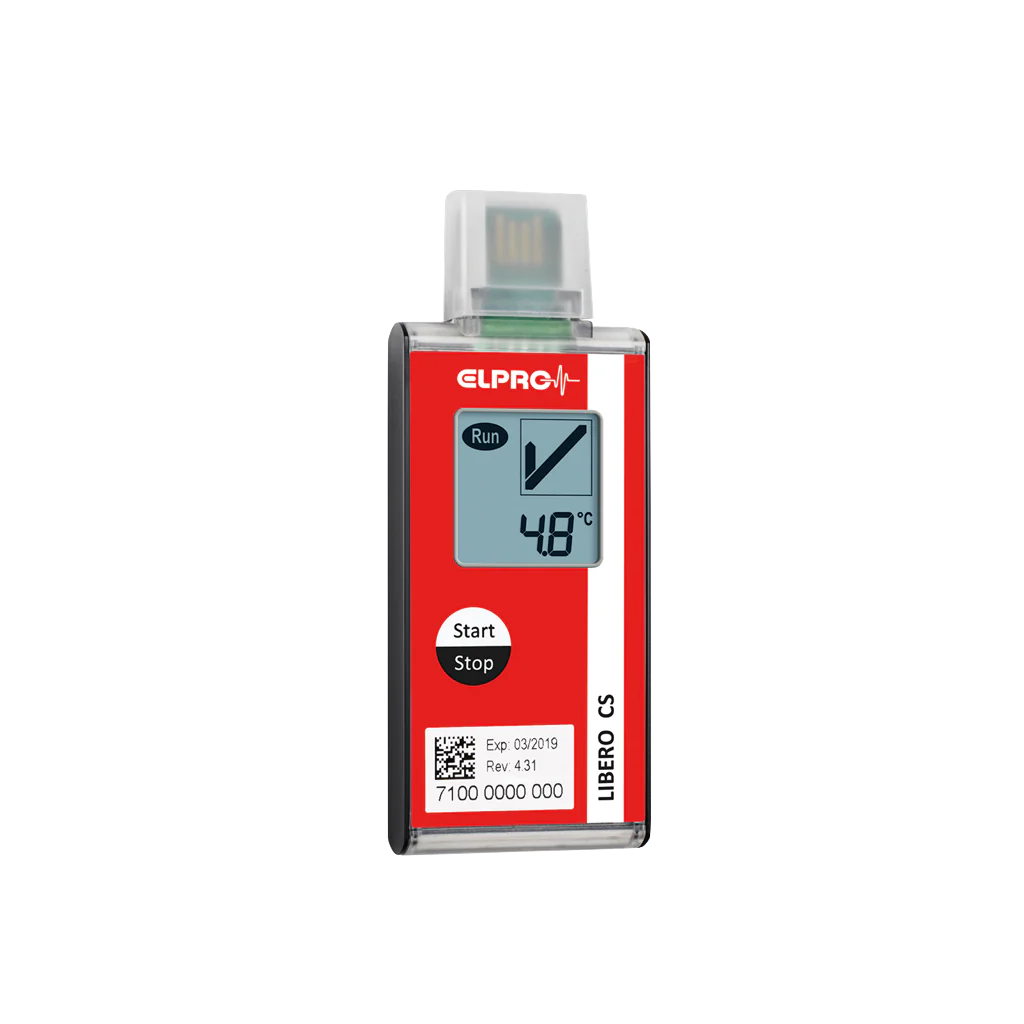

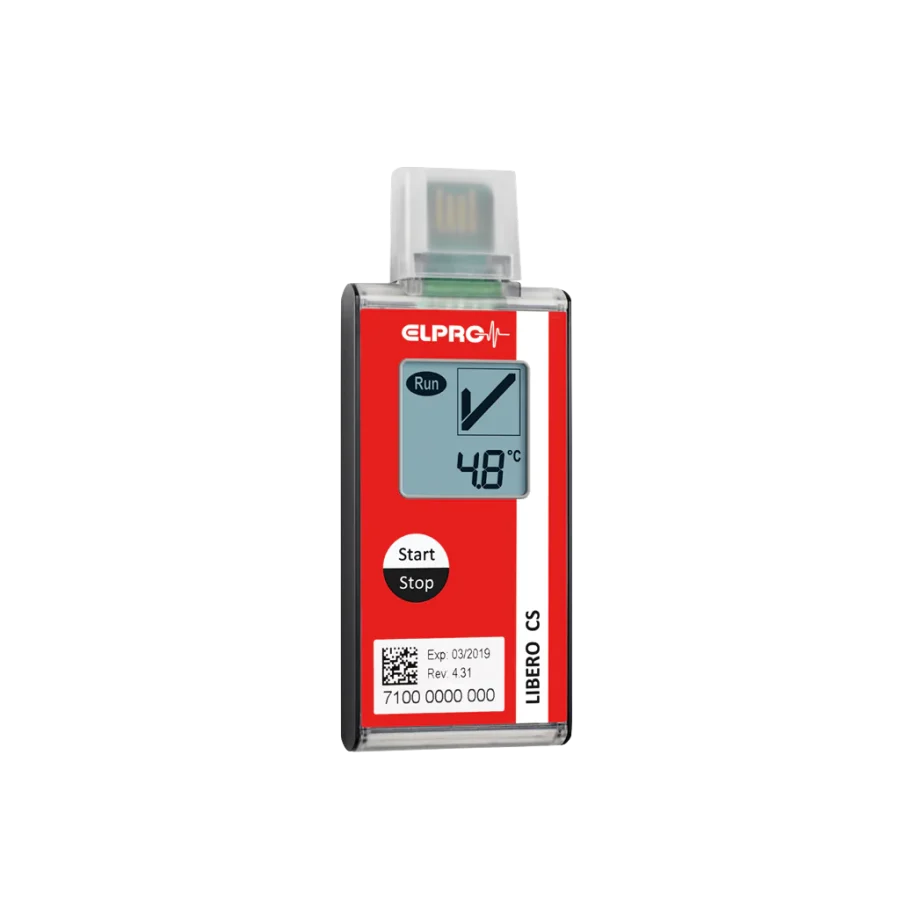

Technical Specifications LIBERO CS
| Type | PDF Logger with multiple alarm levels |
| Application area | Cold Chain Monitoring – applications with stability data or other allowed time / temperature excursions |
| Recording options and mode | Single use: start / stop mode |
| Operating range | -30 °C..+70 °C |
| Measurement accuracy | The LIBERO CS is the most accurate data logger amongst its peers and features a guaranteed accuracy of
±0.4 °C in the core range of 0.0 °C to 25.0 °C. The typical accuracy (95 % of all LIBEROs) is even better with ±0.3 °C in the core range. |
| Accuracy over full temperature range:
±0.4 °C from 0.0 °C to +25.0 °C ±0.5 °C from -10.0 °C to -0.1 °C as well as +25.1 °C to +50.0 °C ±1.0 °C from -30.0 °C to -10.1 °C as well as +50.1 °C to +70.0 °C |
|
| Resolution | 0.1 ° |
| Measurement interval | 1 to 60 minutes, user programmable |
| Memory capacity | 24’200 measurement values (equals 168 days run time with 10 min interval) |
| Expiry date & battery life | – Data logger can be started any time during shelf life
– Started data logger runs until memory is full or logger is stopped (max. expiry date +30 days) – Auto expiry date management: After expiry, display changes status and logger cannot be started anymore – Use below 0 °C and above +40 °C for prolonged times can limit battery life |
| Battery type | Button cell contained in equipment, UN3091, exempt from DGR declaration |
| Certificate | Ilac / NIST / ISO 17025 traceable production calibration certificate |
| Programmable alarms | – 8 temperature alarm levels with single or cumulative delays
– Alarm on MKT – 2 temperature thresholds with alarm delay – Alarm on duration / run time |
| Start-up delay | 0 minutes to 24 h |
| Display | Multifunction LCD, size: 23.5 × 23.5 mm, with large OK and ALARM indicator |
| Display functionality | – Status: Conf, Start, Run, Stop
– Current temperature measurement – OK, ALARM or blank – Configuration profile identification |
| Report | Built-in PDF file generator automatically establishes an evaluation report with embedded data upon connection to an USB port. Complies with the ISO standard 19005-1 Document Management for the long-term preservation of electronic documents (PDF/A) and FDA 21 CFR Part 11.
– Customizable report title and filename – Text area for additional information (e.g. shipment information, instructions for recipient, etc.) – Statistics (min/max, average, alarm) and detailed logger information (ID, configuration, etc.) – Chart visualizing the temperature curve and alarm limits |
| Traceability | ID number (traceable to component level) |
| Case | dimension | weight | ABS plastic material | 96 × 37 × 11 mm (3.8 × 1.5 × 0.5 inch) | 38 g (1.34 oz) |
| Certifications | CE | EN12830 | EMC | RTCA DO-160 | RoHS | WHO-PQS | Safe Transport of Chemical Goods |
| Data logger configuration and analysis software | liberoCONFIG and SmartStart software to create, store and manage individual settings in a settings profile. liberoMANAGER database as cloud service to store shipment reports and results, analyze shipments, manage release status and trigger customer specific workflows in cold chain processes.
elproVIEWER software to access and export embedded data of PDF report, for data analysis and comprehensive report features (for users not using liberoMANAGER). |

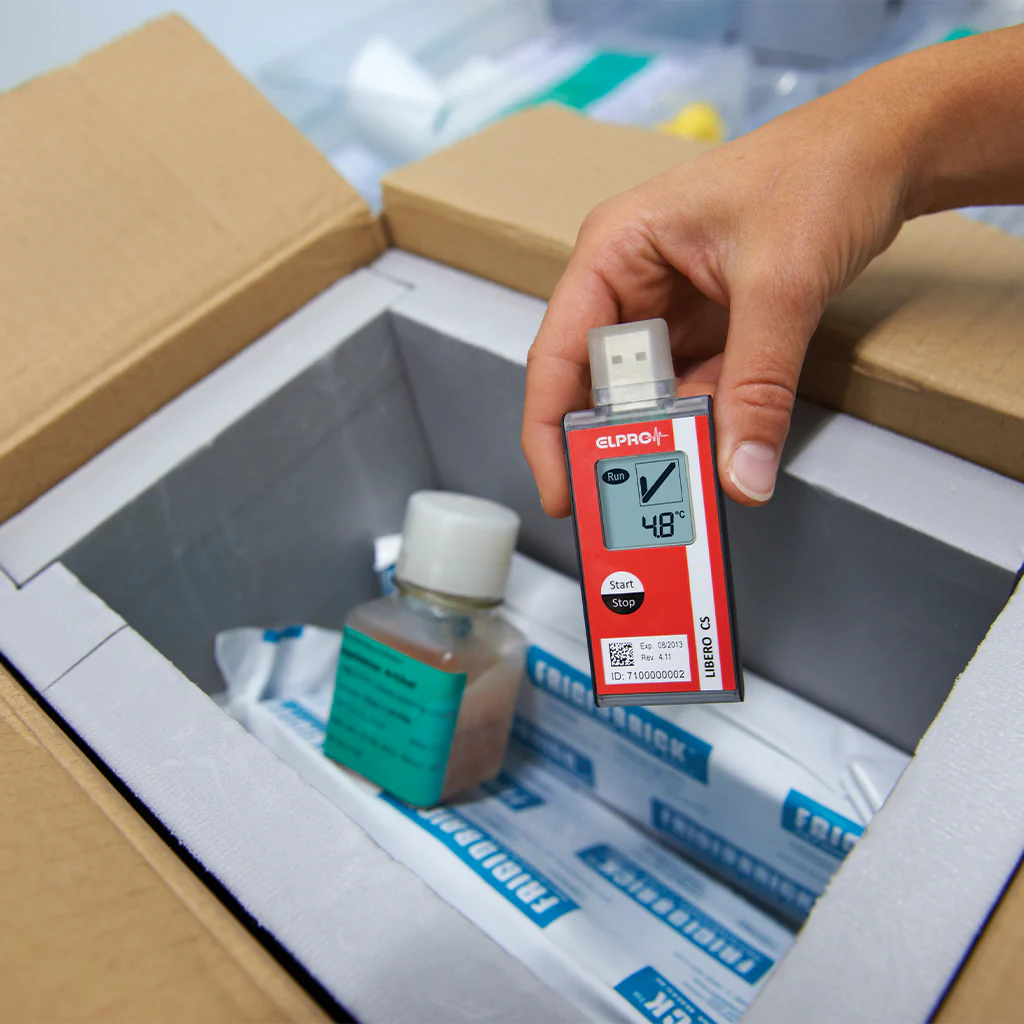

LIBERO CS – Bộ Ghi Dữ Liệu PDF Đa Cấp
LIBERO CS là bộ ghi dữ liệu PDF giúp đơn giản hóa quy trình vận chuyển cho các sản phẩm có dữ liệu ổn định đã biết. Hỗ trợ đến tám mức cảnh báo, MKT và thời gian là các tiêu chí cảnh báo, LIBERO CS cho phép người dùng tạo hồ sơ nhiệt độ cho từng sản phẩm. Không cần lưu trữ nhiều bộ ghi khác nhau, chỉ cần áp dụng hồ sơ cấu hình phù hợp và thêm thông tin lô hàng khi sử dụng, sau đó gửi bộ ghi đi. Không yêu cầu thiết bị hay phần mềm. Giải phóng sản phẩm dựa trên trạng thái OK hoặc CẢNH BÁO hiển thị trên màn hình, tải xuống báo cáo PDF và gửi đến người gửi hoặc hệ thống liberoMANAGER để phân tích thêm.
