SPECIFICATIONS LIBERO CL-Y – ELPRO
General technical data: |
|
| Type: | PDF Data Logger with USB and Bluetooth® Low Energy (BLE) interface with internal temperature probe |
| Application: | Shipment container monitoring; round trip shipment monitoring; monitoring for rooms, refrigerators, freezers |
| Recording options and mode: | Multiple use: start/stop or loop mode |
| Type of probe: | Digital 3-PIN combination probe
Extension cable: Max 10 meters (no shielding required) |
| Measurement range: | –30 °C.. +70 °C |
| Resolution: | 0.1 °C |
| Measurement intervals: | 1 to 60 minutes, user configurable |
| Memory capacity: | 75,500 measurement values (equals logging duration of 17 months at 10 minute logging interval) |
| Battery life: | 1 year |
| Configurable alarms: | 8 temperature alarm zones with single or cumulative delays, alarm on MKT, alarm on duration/run time |
| Certificate: | CE, UKCA, FCC, ICES, RoHS, WEEE, GAMP® 5, RTCA DO-160, EN12830
Calibration Certificate: ILAC/NIST/ISO 17025 (customizable options available) |
| Display: | Multifunction LCD, size: 22 × 22 mm (0.87 × 0.87 inch), with OK and ALARM indicator |

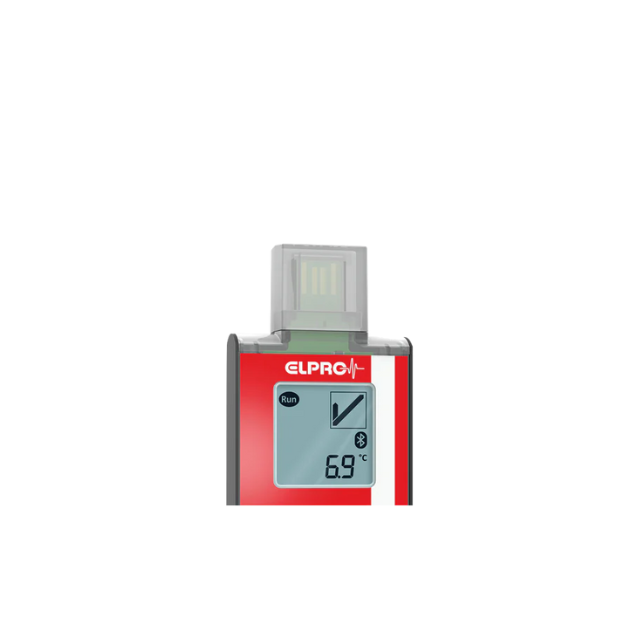

LIBERO CL-Y
The LIBERO CL-Y is a multi-use PDF data logger designed for monitoring temperature conditions during transportation and storage. It features a highly accurate, 100% calibrated internal temperature sensor and supports up to eight configurable alarm zones, including MKT (Mean Kinetic Temperature) and duration-based alarms.
LIBERO CL-Y is equipped with both USB and Bluetooth® Low Energy (BLE) interfaces, allowing users to download PDF reports directly via USB or wirelessly using the LIBERO Cx BLE app (available for iOS and Android). The logger can be started, stopped, and monitored without physically removing it from shipments or storage units. With a battery life of up to 1 years and a large storage capacity of 75,500 measurements, LIBERO CL-Y ensures long-term and reliable monitoring.
