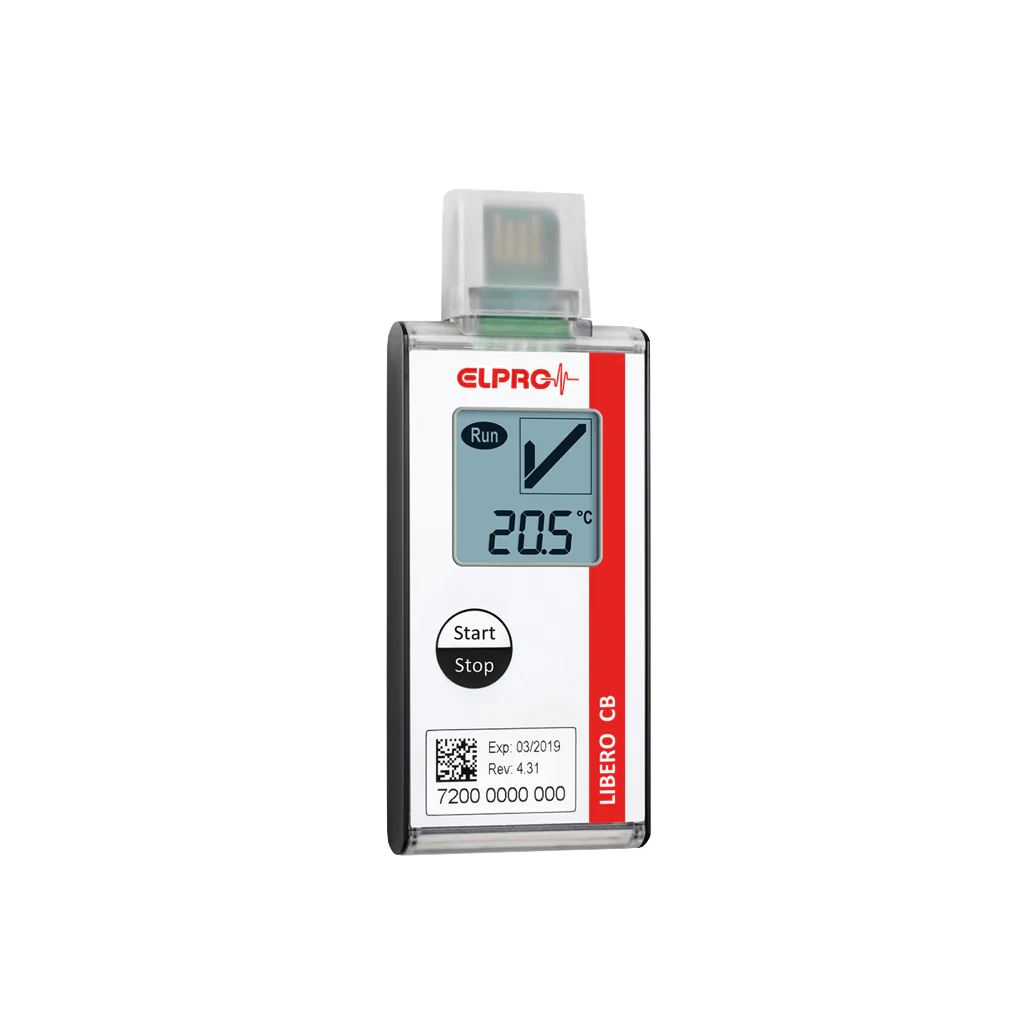

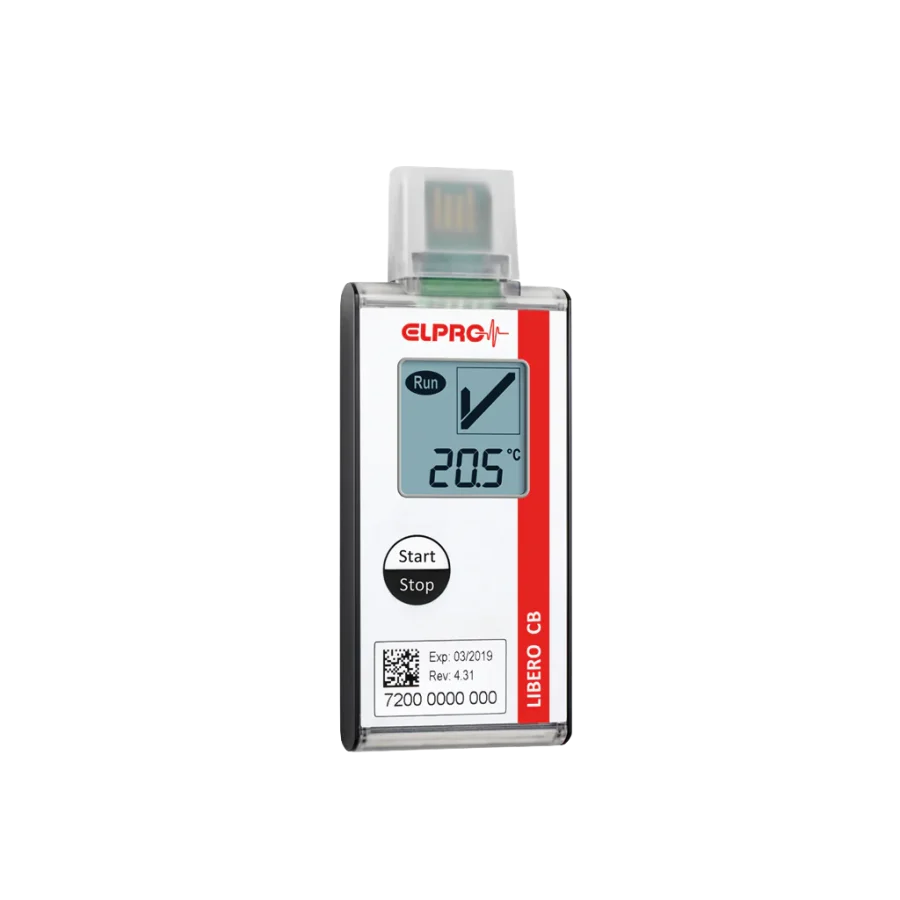

SPECIFICATIONS LIBERO CB
| Type | PDF Logger with two alarm thresholds and alarm delay |
| Application area | Cold Chain Monitoring – applications monitored with strict alarm limits, MKT or time |
| Recording options and mode | Single use: start / stop mode |
| Operating range | -30 °C..+70 °C |
| Measurement accuracy | The LIBERO CB is the most accurate data logger amongst its peers and features a guaranteed accuracy of
±0.4 °C in the core range of 0.0 °C to 25.0 °C. The typical accuracy (95 % of all LIBEROs) is even better with ±0.3 °C in the core range. |
| Accuracy over full temperature range:
±0.4 °C from 0.0 °C to +25.0 °C ±0.5 °C from -10.0 °C to -0.1 °C as well as +25.1 °C to +50.0 °C ±1.0 °C from -30.0 °C to -10.1 °C as well as +50.1 °C to +70.0 °C |
|
| Resolution | 0.1 ° |
| Measurement interval | 1 to 60 minutes, user programmable |
| Memory capacity | 24’200 measurement values (equals 168 days run time with 10 min interval) |
| Expiry date and battery life | – Data logger can be started any time during shelf life
– Started data logger runs until memory is full or logger is stopped (max. expiry date +30 days) – Auto expiry date management: After expiry, display changes status and logger cannot be started anymore – Use below 0 °C and above +40 °C for prolonged times can limit battery life |
| Battery type | Button cell contained in equipment, UN3091, exempt from DGR declaration |
| Certificate | Ilac / NIST / ISO 17025 traceable production calibration certificate |
| Programmable alarms | 2 temperature thresholds with alarm delay | Alarm on MKT | Alarm on duration / run time |
| Start-up delay | 0 minutes to 24 h |
| Display | Multifunction LCD, size: 23.5 x 23.5 mm, with large OK and ALARM indicator |
| Display functionality | – Status: Conf, Start, Run, Stop
– Current temperature measurement – OK, ALARM or blank – Configuration profile identification |
| Report | Built-in PDF file generator automatically establishes an evaluation report with embedded data upon connection to a USB port. Complies with the ISO standard 19005-1 Document Management for the long-term preservation of electronic documents (PDF/A) and FDA 21 CFR Part 11.
– Customizable report title and filename – Text area for additional information (e.g. shipment information, instructions for recipient, etc.) – Statistics (min/max, average, alarm) and detailed logger information (ID, configuration, etc.) – Chart visualizing the temperature curve and alarm limits |
| Traceability | ID number (traceable to component level) |
| Case | dimension | weight | ABS plastic material | 96 × 37 × 11 mm (3.8 × 1.5 × 0.5 inch) | 38 g (1.34 oz) |
| Certifications | CE | EN12830 | EMC | RTCA DO-160 | RoHS | WHO-PQS | Safe Transport of Chemical Goods |
| Data logger configuration and analysis software | liberoCONFIG and SmartStart software to create, store and manage individual settings in a settings profile. liberoMANAGER database as cloud service to store shipment reports and results, analyze shipments, manage release status and trigger customer specific workflows in cold chain processes.
elproVIEWER software to access and export embedded data of PDF report, for data analysis and comprehensive report features (for users not using liberoMANAGER). |

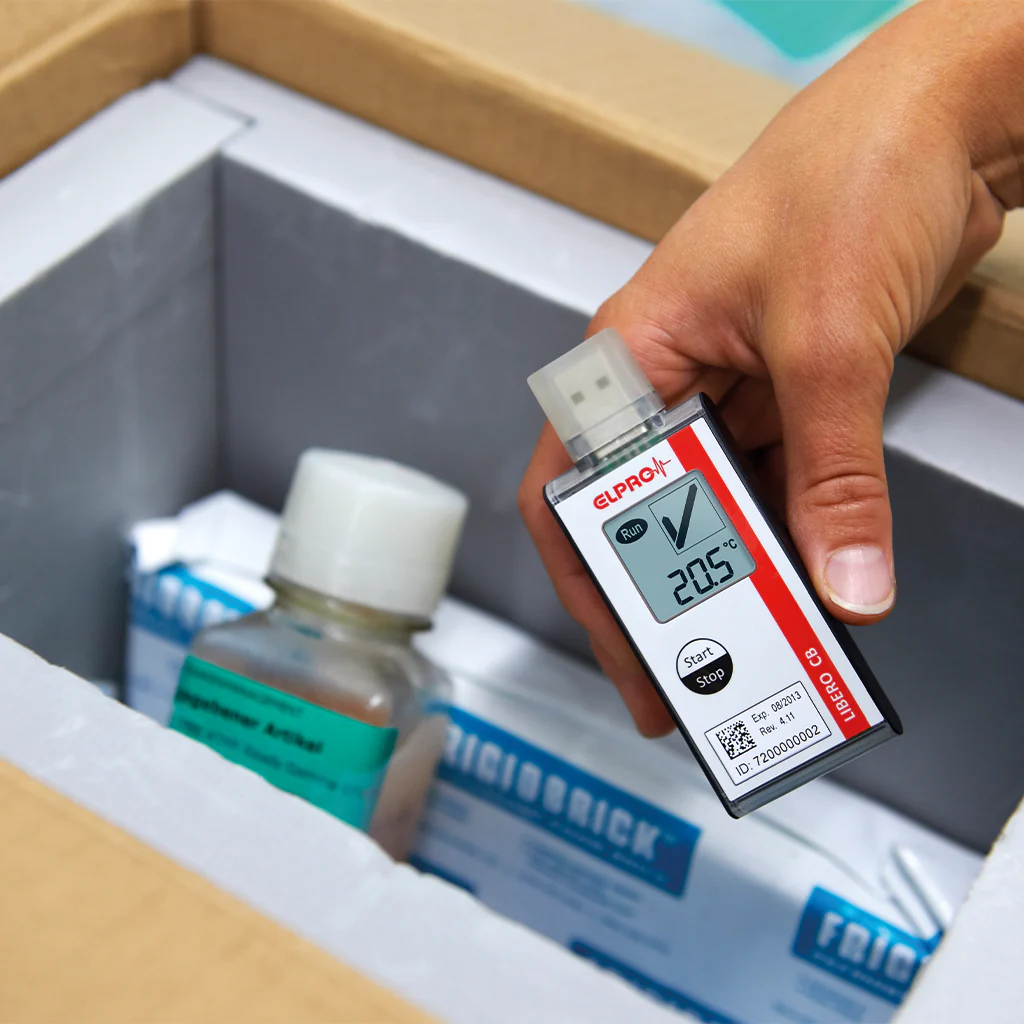

LIBERO CB – Bộ ghi dữ liệu PDF giám sát chuỗi lạnh
LIBERO CB là giải pháp giám sát nhiệt độ chi phí tối ưu, phù hợp với hầu hết các ứng dụng chuỗi lạnh. Thiết bị cho phép thiết lập ngưỡng cảnh báo riêng, ghi nhận dữ liệu và tự động tạo báo cáo PDF không cần phần mềm hoặc thiết bị bổ sung.
Ứng dụng:
- Giám sát nhiệt độ chuỗi cung ứng dược phẩm, thực phẩm.
- Kiểm soát chất lượng sản phẩm trong vận chuyển lạnh.
- Theo dõi, lưu trữ dữ liệu tuân thủ tiêu chuẩn ngành.
