SPECIFICATIONS PROBE FOR ECOLOG-PRO 1THR (0 %rH…100 %rH) – ELPRO
General technical data: |
|
| Type: | Wireless temperature/humidity data logger |
| Application: | Temperature and humidity monitoring for rooms or incubators |
| Sensor type: | External 3-pin temperature/humidity combination probe |
| Probe connection: | Digital 3-PIN combination probe
Extension cable: Max 10 meters (no shielding required) |
| Measurement range: | Temperature: -20.0 °C to +80.0 °C
Humidity: 0 %RH – 100 %RH |
| Resolution: | 0.1 °C, 0.1 %RH |
| Measurement intervals: | 1, 2, 3, 5, 10, 15, 20, 30, 60 minutes (user-configurable) |
| Data storage capacity: | 43,000 measurement values |
| Battery life: | Up to 14 months |
| Environmental storage temperature/humidity: | -10 °C..+50 °C
10 %RH..90 %RH, non-condensing |
| Operating altitude: | This device must not be used at altitudes higher than 2000 meters above sea level. |
| Display: | 2 LED for communication and measurement status |
| Certificate: | Calibration certificate based on manufacturer calibration standards or ISO 17025 available upon request |

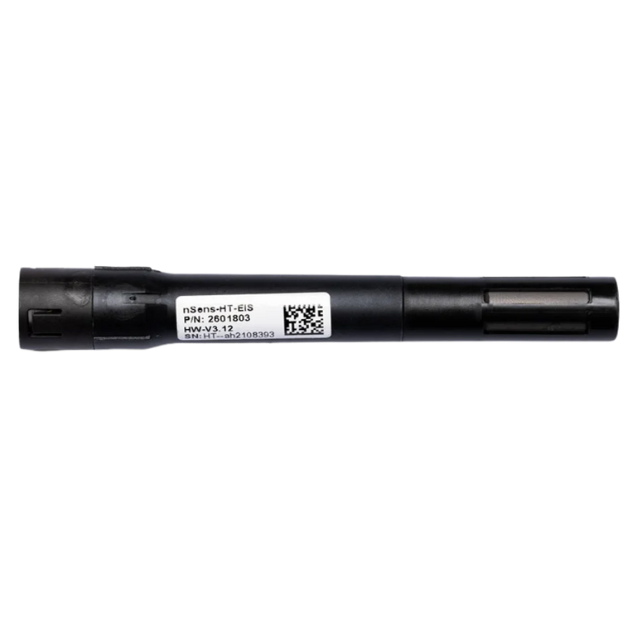

PROBE FOR ECOLOG-PRO 1THR (0 %rH…100 %rH)

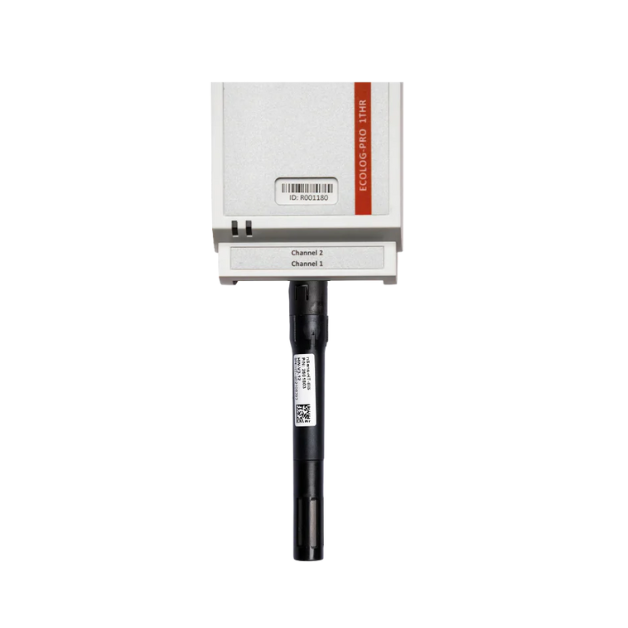

The ECOLOG-PRO 1THR is a wireless temperature and humidity data logger designed for monitoring valuable materials stored in rooms or incubators. It operates on battery power and supports radio communication using either the 868 MHz (Europe, UK, Singapore) or 915 MHz (USA, Australia, New Zealand) frequency bands, ensuring reliable connectivity.
Setup is simple and takes only a few minutes. The device can be registered on elproCLOUD or elproMONITOR, then paired with an ECOLOG-PRO RBR communication module. It features internal data storage for thousands of measurements, ensuring no data is lost in case of temporary connection failures. If the connection is interrupted, the module automatically searches for an available radio bridge.
The elproCLOUD web application aggregates all sensor data into a comprehensive dashboard and provides real-time alerts if alarm thresholds are exceeded. Additionally, elproMONITOR integrates into IT infrastructures to manage large-scale monitoring networks with both wired and wireless sensors.
