SPECIFICATIONS ECOLOG-PRO 1THGi – ELPRO
General technical data: |
|
| Type: | Wireless IoT data logger with internal temperature/humidity probe |
| Application: | Climate monitoring for rooms, refrigerators, freezers |
| Sensor type: | Combined Temperature / Relative Humidity sensor
Light sensor |
| Measurement range: | – 40 °C..+70 °C (internal sensor), 0 %RH…100 %RH (non-condensing) |
| Resolution: | 0.1 °C |
| Measurement intervals: | 15, 20, 30, 60 minutes; user programmable via software (elproCLOUD) |
| Measurement capacity: | 31’000 measurement values (equal 322 days at 15 min measurement interval) |
| Cellular network: | LTE-M and NB-IoT (Global Roaming) |
| IP code: | IP52 |
| Battery life: | Up to 14 months (battery performance depends on temperature range and communication frequency) |
| Configurable alarms | 7 temperature thresholds with alarm delay (4 upper limits, 3 lower limits) |
| Display: | Multifunction LCD, size: 42 × 20 mm |
| Certificate: | CE, FCC, UKCA, ICES, RoHS, UN38.3, WEEE, NCC, RSM, TDRA, ENACOM, IMDA, MIC, ACMA/RCM
ILAC/NIST/ISO 17025 calibration certificate available |
ECOLOG-PRO 1THGi

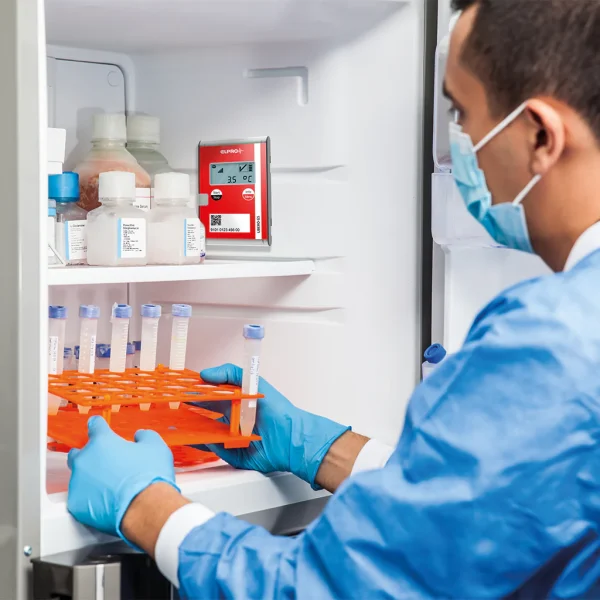

The ECOLOG-PRO 1THGi is a wireless IoT temperature and humidity data logger designed for climate monitoring in rooms, refrigerators, and freezers. It features cellular connectivity (LTE-M and NB-IoT Global Roaming), enabling real-time data transmission to elproCLOUD without requiring additional communication modules.
The logger includes a high-accuracy, 100% calibrated temperature and humidity sensor, ensuring precise environmental monitoring. With local storage for up to 31,000 measurements, it guarantees data integrity even in case of temporary network interruptions.

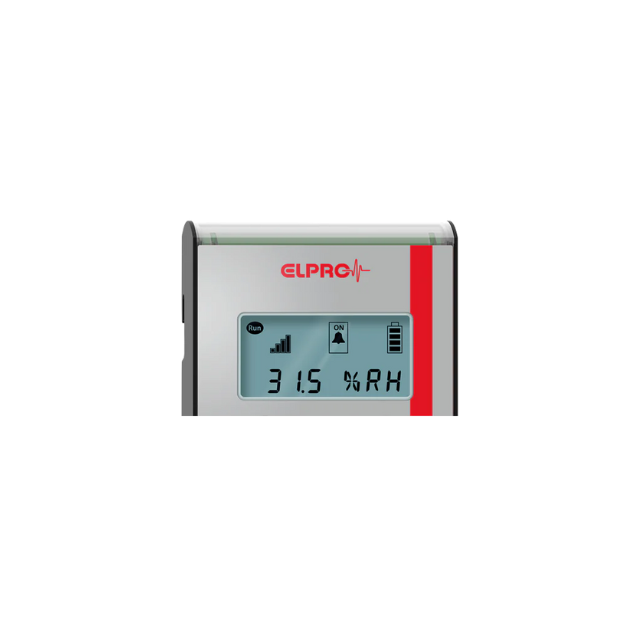

The multi-function LCD display provides real-time status updates, while exchangeable batteries allow for long-term operation of up to 14 months. The device also supports configurable alarms for temperature and humidity thresholds, making it ideal for pharmaceutical, food storage, and industrial climate monitoring.
