SPECIFICATIONS ECOLOG-PRO 1TGi – ELPRO
General technical data: |
|
| Type: | Wireless IoT data logger with internal temperature probe |
| Application: | Temperature monitoring for rooms, refrigerators, freezers |
| Sensor type: | Temperature sensor
Light sensor |
| Measurement range: | – 40 °C..+70 °C (internal sensor) |
| Resolution: | 0.1 °C |
| Measurement intervals: | 5, 10, 15, 20, 30, 60 minutes; user programmable via software (elproCLOUD) |
| Measurement capacity: | 31’000 measurement values (equal 215 days at 10 min measurement interval) |
| Cellular network: | LTE-M and NB-IoT (Global Roaming) |
| IP protection class: | IP20 |
| Battery life: | Up to 14 months (battery performance depends on temperature range and communication frequency) |
| Configurable alarms | 7 temperature thresholds with alarm delay (4 upper limits, 3 lower limits) |
| Display: | Multifunction LCD, size: 42 × 20 mm |
| Certificate: | CE, FCC, UKCA, ICES, RoHS, UN38.3, WEEE, NCC, RSM, TDRA, ENACOM, IMDA, MIC, ACMA/RCM
ILAC/NIST/ISO 17025 calibration certificate available |

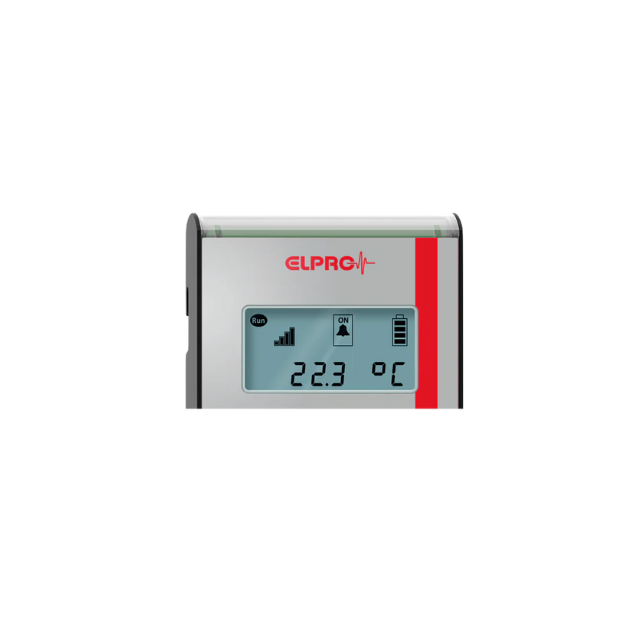

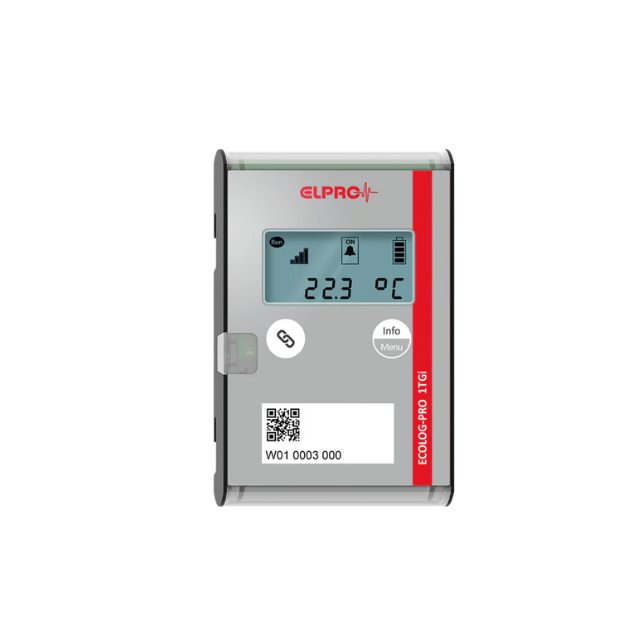

ECOLOG-PRO 1TGi
The ECOLOG-PRO 1TGi is a wireless IoT temperature data logger designed for monitoring rooms, refrigerators, and freezers. It features cellular connectivity (LTE-M and NB-IoT Global Roaming), ensuring plug-and-play setup and real-time data transmission to elproCLOUD.
Equipped with a high-accuracy, 100% calibrated internal temperature sensor, it allows flexible positioning without the need for additional communication modules. The logger has a local storage capacity of 31,000 measurement values, ensuring data integrity even in case of temporary connectivity issues.
The multi-function LCD display provides immediate status updates, while exchangeable batteries support long-term operation of up to 14 months. Configurable alarms notify users of temperature deviations, making it ideal for pharmaceutical, food, and industrial cold chain monitoring.
