SPECIFICATIONS ECOLOG-PRO 1TGe – ELPRO
General technical data: |
|
| Type: | Wireless IoT data logger with internal and external temperature sensor |
| Application: | Climate monitoring for rooms, refrigerators, freezers, ultra-low freezers and cryo containers |
| Sensor type: | Internal temperature sensor
External Pt100 probe (requires M8 connector) Light sensor |
| Measurement range: | – 30 °C..+70 °C (internal sensor),
– 200 °C..+400 °C (depending on probe) |
| Resolution: | 0.1 °C |
| Measurement intervals: | 5, 10, 15, 20, 30, 60 minutes; user programmable via software (elproCLOUD) |
| Measurement capacity: | 31‘000 measurement values |
| Cellular network: | LTE-M and NB-IoT (Global Roaming) |
| Communication interval: | 30 min to 6 hours, user programmable, event-driven immediate communication (e.g. temperature excursion) |
| Battery life: | Up to 14 months (battery performance depends on temperature range and communication frequency) |
| Display: | Multifunction LCD, size: 42 × 20 mm |
| Certificate: | CE, FCC, UKCA, ICES, RoHS, UN38.3, WEEE, NCC, RSM, TDRA, ENACOM, IMDA, MIC, ACMA/RCM
ILAC/NIST/ISO 17025 calibration certificate available |

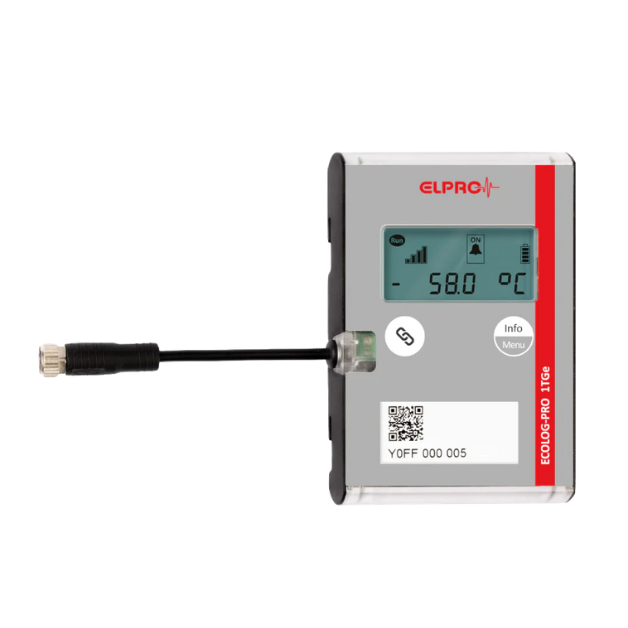

ECOLOG-PRO 1TGe
The ECOLOG-PRO 1TGe is a wireless IoT temperature data logger designed for monitoring climate conditions in rooms, refrigerators, freezers, ultra-low freezers, and cryo containers. It features a high-accuracy internal temperature sensor and supports an external Pt100 probe (M8 connector), enabling an extended measurement range from -200 °C to +400 °C.
The device operates on LTE-M and NB-IoT (Global Roaming) for real-time data transmission to elproCLOUD, with local storage for up to 31,000 measurements. It ensures data integrity even in case of temporary connectivity issues and supports event-driven immediate alerts for temperature excursions.
With a multi-function LCD display, exchangeable batteries, and configurable alarm settings, the ECOLOG-PRO 1TGe is an ideal solution for pharmaceutical cold chain logistics, industrial monitoring, and ultra-low temperature applications.
