SPECIFICATIONS ECOLOG-PRO 2PTR – ELPRO
General technical data: |
|
| Type: | Wireless temperature logger |
| Application: | Temperature monitoring for rooms, refrigerators, freezers, ULT-freezers or cryo environment |
| Type of probe: | 2 independent temperature channels with separate external connected 4-wire Pt100 probes |
| Probe connection: | Standard probe: Pt100 temperature sensor, 3m cable, no shielding
Extension: maximum 17 meters, no shielding |
| Measurement range: | -200 °C..+200 °C (depending on the connected probe) |
| Measurement accuracy: | ±0.2 °C |
| Resolution: | ±0.1 °C |
| Measurement intervals: | 1, 2, 3, 5, 10, 15, 20, 30, 60 minutes; user programmable via software (elproCLOUD & elproMONITOR) |
| Measurement capacity: | 43’000 measurement values |
| IP protection class: | IP20 |
| Battery life: | Up to 14 months |
| Environmental storage temperature/humidity: | -10 °C..+50 °C
10 %RH..90 %RH, non-condensing |
| Environmental operating temperature/humidity: | 0 °C..+40 °C
10 %RH..90 %RH, non-condensing |
| Operating altitude: | This device must not be used at altitudes higher than 2000 meters above sea level |
| Display: | 2 LED for communication and measurement status |
| Certificate: | Calibration certificate based on manufacturer calibration standards or ISO 17025 available upon request |
ECOLOG-PRO 2PTR

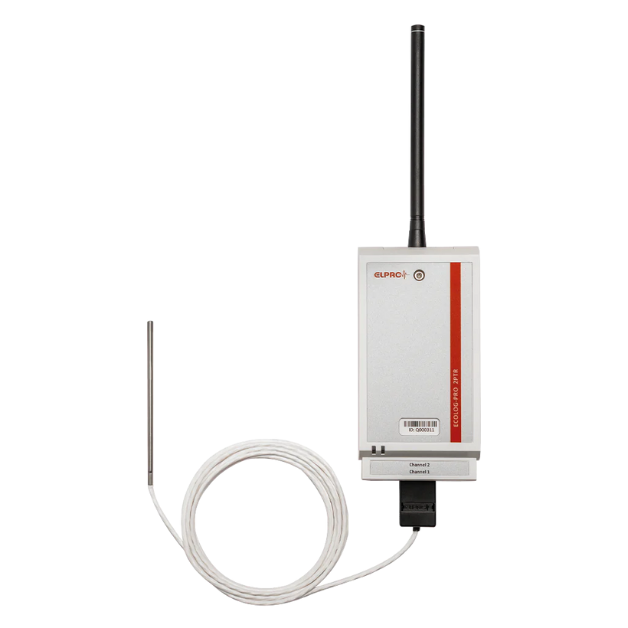

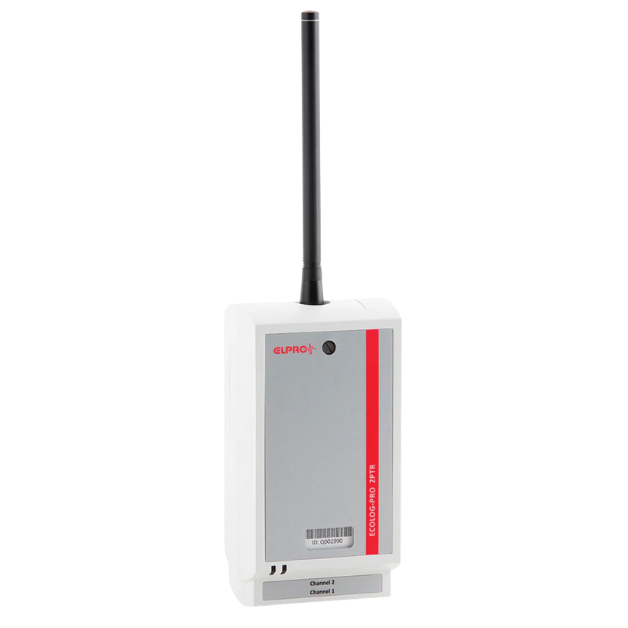

The ECOLOG-PRO 2PTR is a wireless temperature data logger designed for monitoring rooms, refrigerators, freezers, ultra-low temperature (ULT) freezers, and cryogenic environments. It features two independent external Pt100 probes, allowing simultaneous temperature monitoring at two different locations.
This battery-operated and wireless logger communicates via 868 MHz (Europe, UK, Singapore) or 915 MHz (USA, Australia, New Zealand) frequency bands, ensuring reliable data transmission. It seamlessly integrates with elproCLOUD and elproMONITOR, providing real-time data tracking and automated alerts for temperature excursions.
With local storage for up to 43,000 measurement values, the device ensures data integrity even in case of temporary connectivity loss. The ECOLOG-PRO 2PTR is ideal for temperature-sensitive storage and transport applications in pharmaceutical, biotech, and food industries.
