SPECIFICATIONS LIBERO GH – ELPRO
General technical data: |
|
| Type: | Wireless Data logger with combined internal temperature /humidity sensor |
| Application: | Transport Monitoring: global distribution of temperature & humidity sensitive products |
| Recording options and mode: | Multiple use: start / stop, Loop mode |
| Sensors: | High accuracy digital temperature/humidity sensor, geographical location, light, tilt |
| Measurement range: | 30 °C..+70 °C, 0 %RH…100 %RH (internal sensor) |
| Resolution: | 0.1 ° |
| Measurement intervals: | 15 to 60 minutes, configurable via elproCLOUD |
| Cellular network: | LTE-M and NB-IoT |
| Measurement capacity: | 31.000 measurement values (equals 322 days with 15 min measurement interval) |
| Battery life: | Up to 14 months of operation
6 months continuous operation with 15 min measurement interval and 120 min communication interval (Battery life is affected by temperature and network conditions) |
| Configurable alarms: | 7 temperature thresholds with alarm delay (4 upper limits, 3 lower limits) |
| Certificate: | CE, FCC, UKCA, ICES, RoHS, UN38.3, WEEE, NCC, RSM, TDRA, ENACOM, IMDA, MIC, ACMA/RCM
Calibration Certificate: ILAC/NIST/ISO 17025 |
| Display: | Multifunction LCD, size: 42 × 20 mm |

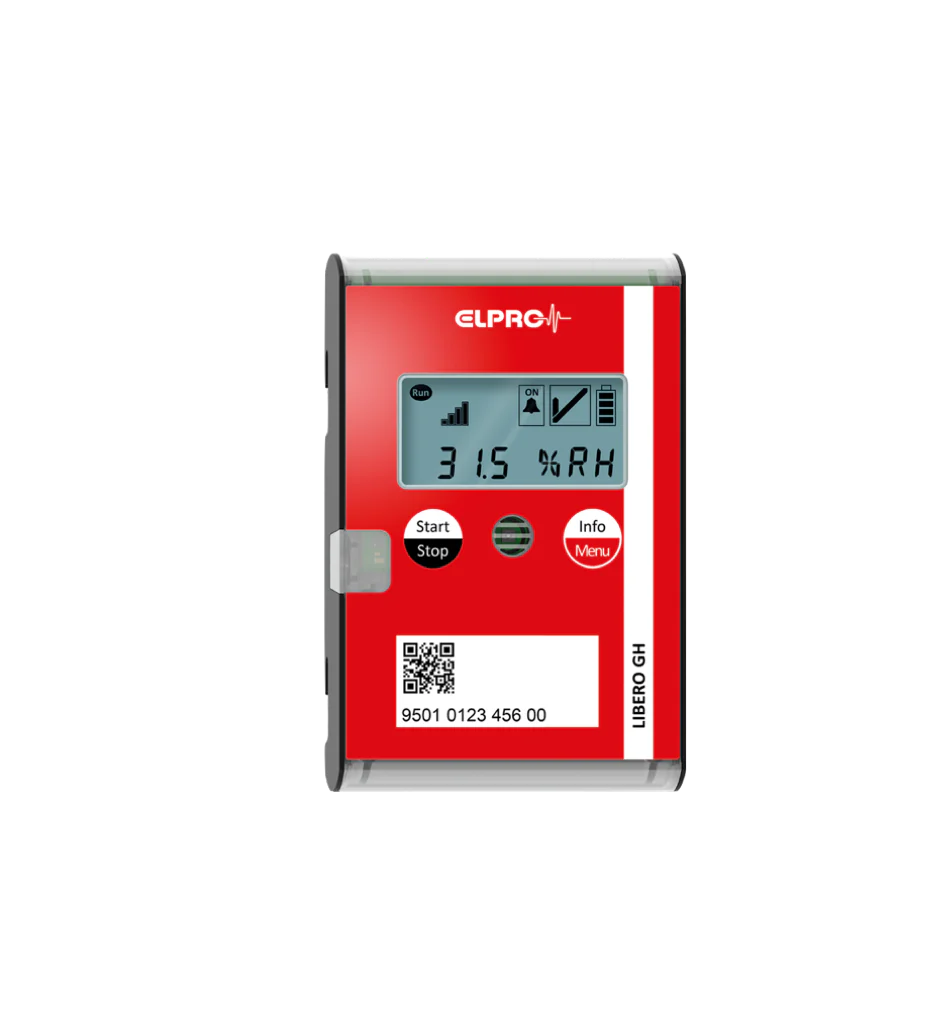

LIBERO GH
The LIBERO GH is a real-time temperature and humidity data logger designed for climate monitoring of shipments, test systems, and verification applications. It features a high-accuracy, 100% calibrated internal temperature and humidity sensor, ensuring reliable monitoring of temperature-sensitive and humidity-sensitive products during transport.
LIBERO GH continuously records temperature, humidity, location, light exposure, and tilt, and uploads data automatically to elproCLOUD via LTE-M and NB-IoT. It supports multi-level alarm criteria and features automatic flight detection, making it ideal for airfreight shipments.
With a storage capacity of 31,000 measurement values and a battery life of over one year, the LIBERO GH is a robust and compliant solution for real-time climate monitoring in global supply chains.
